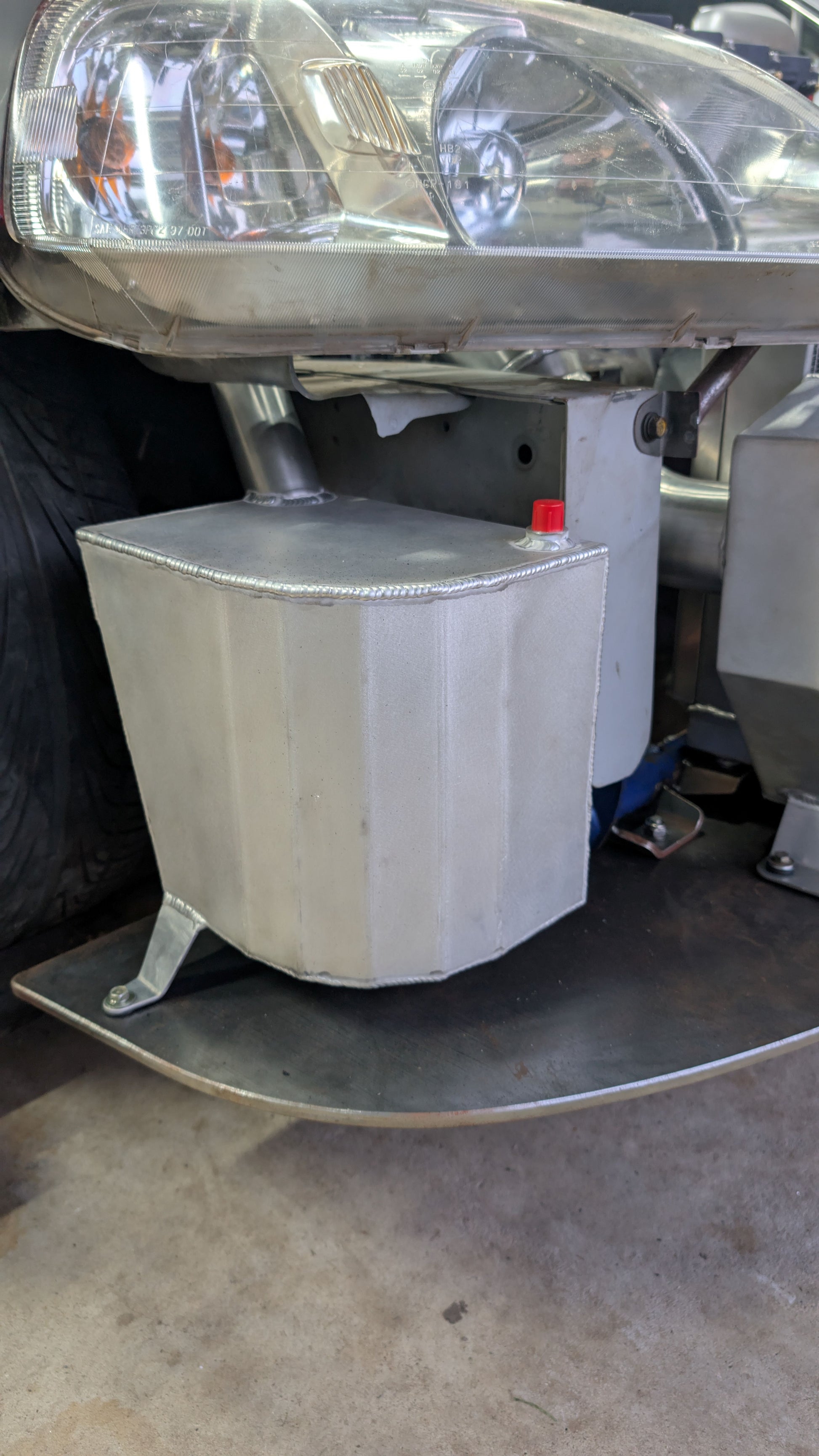

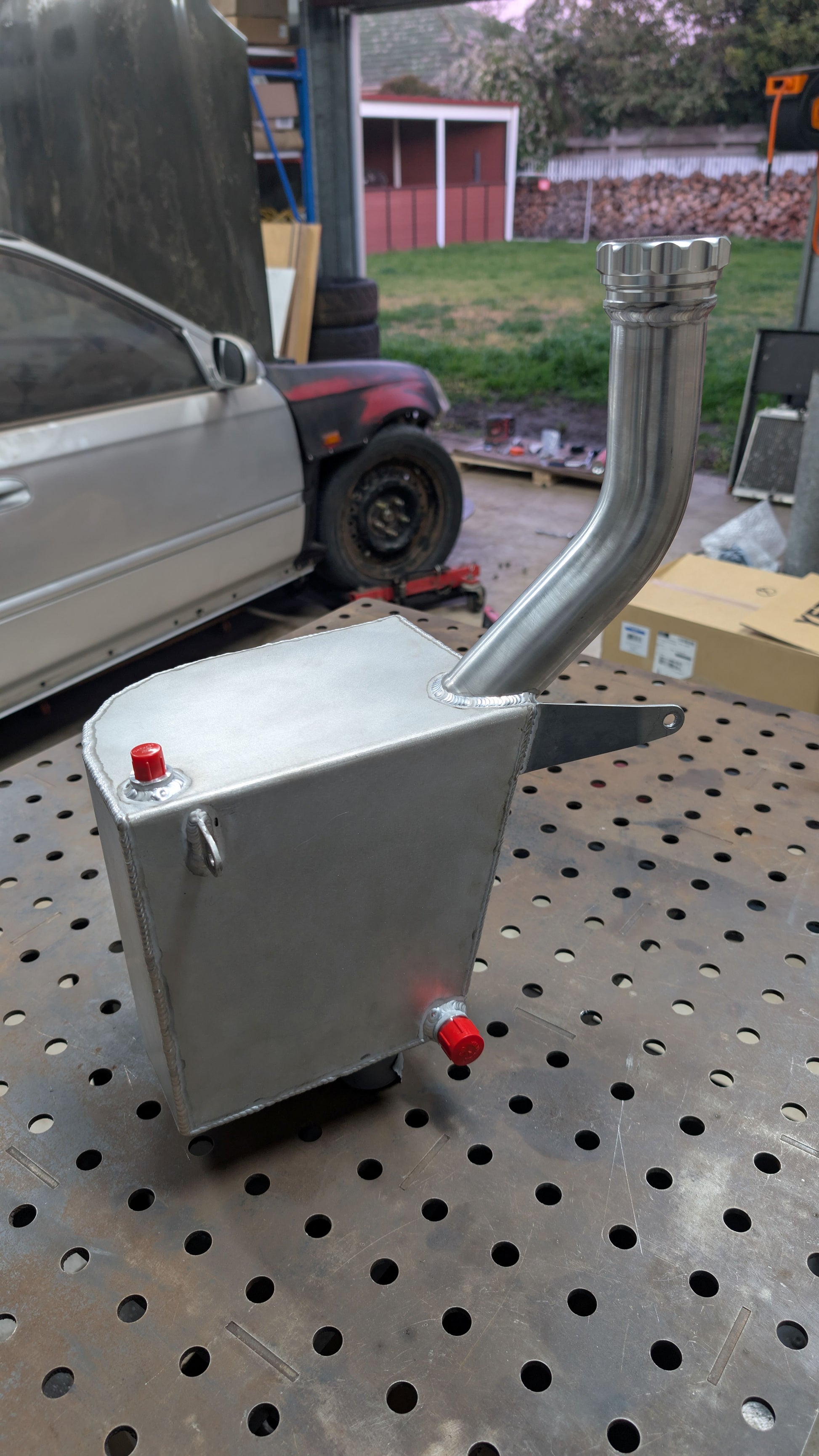

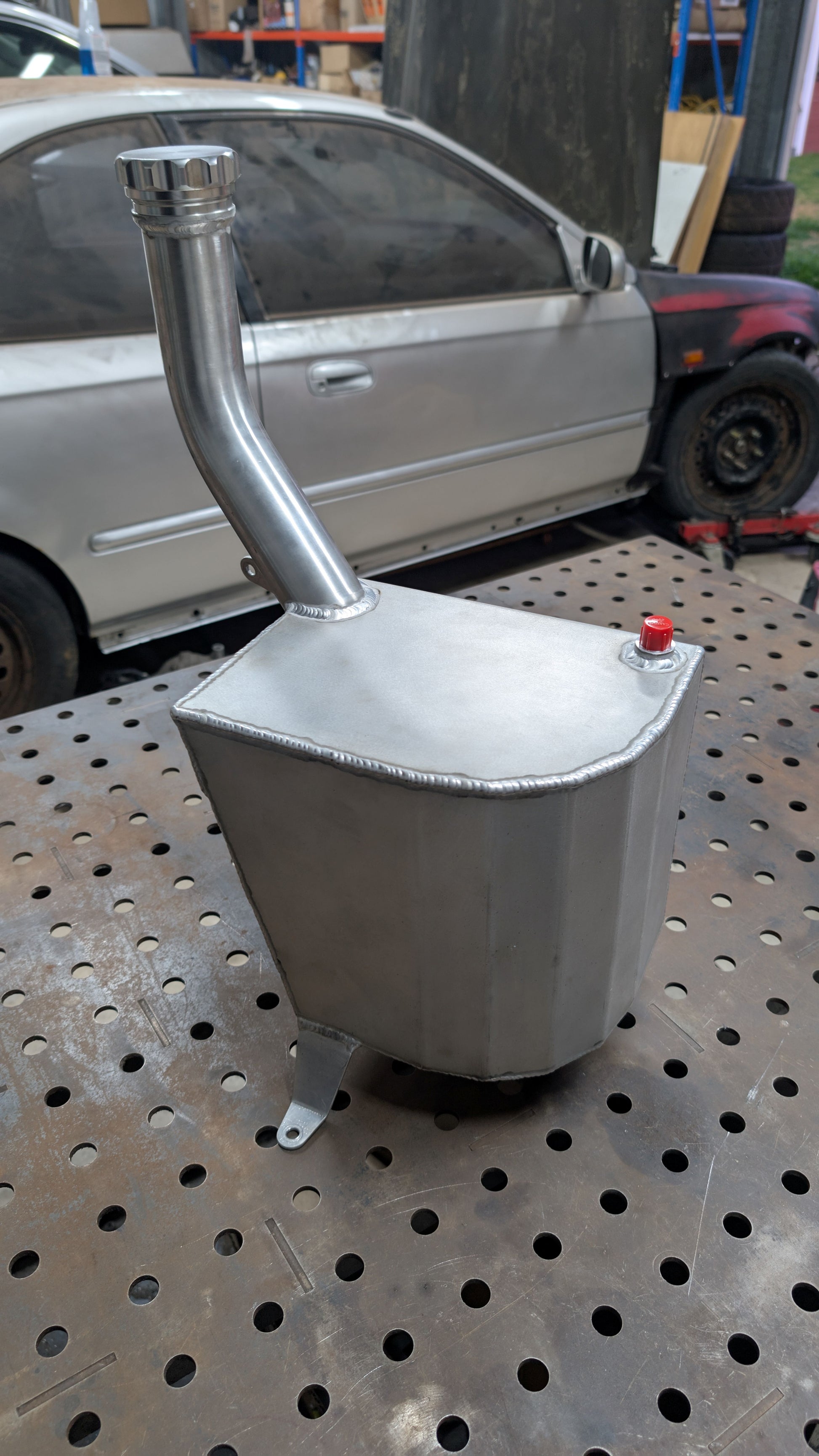

PWFab Front Mount Drag Race Fuel Cell

Built specifically for drag racing in mind, our right side frame rail (drivers side) fuel cell is a must for going fast.

Unique Features:

2.5” OD Billet screw-on fill cap with integrated high flow roll over vent valve to ensure no vacuum or pressure build up and prevent fuel spillage in the event of an accident! This is an often overlooked component that is important for proper performance & safety and is mounted at the highest point in the fuel cell to ensure proper operation. The anodized cap will help prevent corrosion and galling of the threads.

Male -12AN feed fitting (comes standard) with internal pickup tube for maximum flow and to prevent cavitation due to fuel slosh under heavy acceleration.

Male -8AN return fitting (comes standard) is positioned to direct returned fuel to the internal pickup baffle, for superior performance when the fuel level is low

Straight fill neck for easy filling & viewing of fuel level

Optional pre-welded mounting tabs for easy installation. Fuel cell is also available with mounting tabs NOT welded but still included for precise installation to your racecar by your fabricator.

Large 10 litre capacity to support thirsty turbocharged cars on methanol

Expertly TIG welded

Unparalleled craftsmanship and race proven performance

These are Made to Order, please allow 4-6 weeks for fabrication.

Please message before ordering for any custom request, we will be more than happy to accommodate
